For Agriculture
Counting & Packaging Macheine

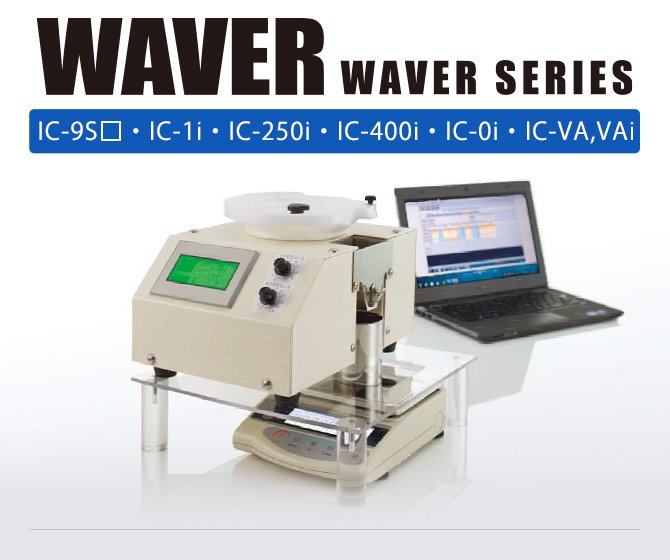

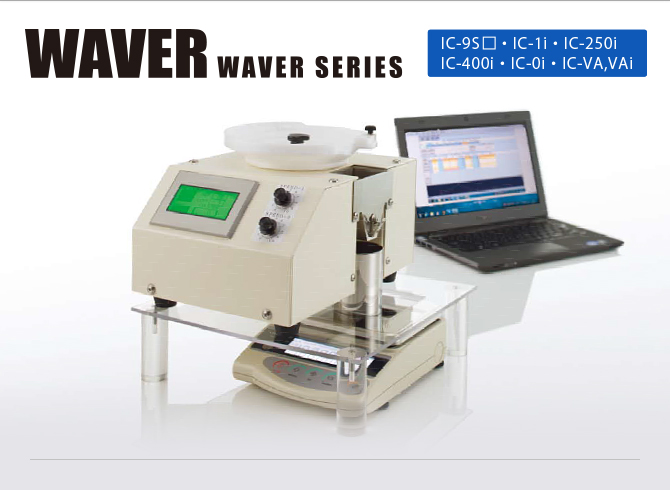

WAVER SERIES WAVER SERIES
IC is exclusively made to count very tiny objects, such as flower seeds, vegetableseeds and very useful for agricultural and bio-technological fields.
Compact size of IC saves space and very easier to operate.
Moreover our technology demonstrates efficiency in work, reduction of labor in your company.

WAVER SERIESLINE UP

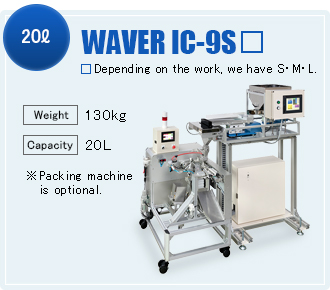

WAVER IC-9S

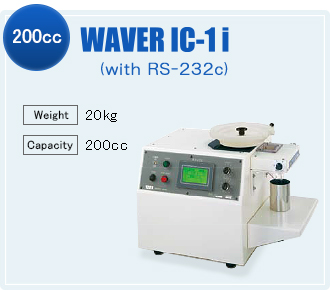

WAVER IC-1i

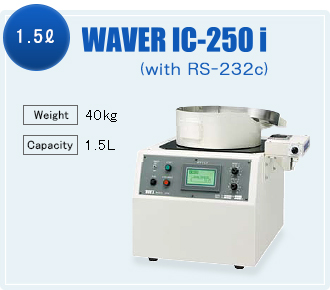

WAVER IC-250i
WAVER IC-400i

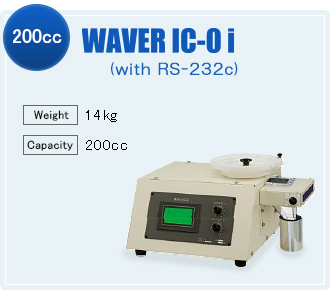

WAVER IC-0i

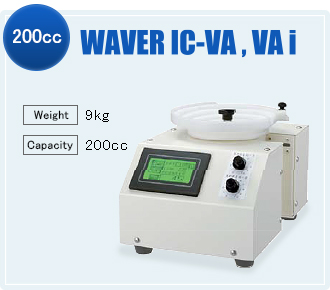

WAVER IC-VA,VA i

WAVER SERIESMain Functions

1.Totalize

Accurately counts all the seeds inside the feeder bowl.

2.Batch count

Predetermined number of objects can be counted exactly through this function.
Over counting is prevented by becoming slower in the latter part of counting.


3.Adjustable sensitivity

Adjustable sensitivity
Object Average Speed(seed/min) Sensor’s Sensitivity
Gypsophila
(0.8-1mm)
1200~1500 Very high(SS)
Tomato Seeds,
Brown rice
(1.5-2mm)
700~1200 High(S)
Rice with chaff,Wheat
(3-5mm)
700~1200 Medium(M)
Soybean,Corn
(15-20mm)
300~400 Low(L)
【Object】
Gypsophila(0.8-1mm)
Average Speed
(seed/min)
1200~1500
Sensor’s Sensitivity Very high(SS)
【Object】
Tomato Seeds,Brown rice(1.5-2mm)
Average Speed
(seed/min)
700~1200
Sensor’s Sensitivity High(S)
【Object】
Rice with chaff,Wheat(3-5mm)
Average Speed
(seed/min)
700~1200
Sensor’s Sensitivity Medium(M)
【Object】
Soybean,Corn(15-20mm)
Average Speed
(seed/min)
300~400
Sensor’s Sensitivity Low(L)

※The specifications could be changed.

※It is effective in change of seed size,not like counting dust of a seed, chaff etc.
IC-VA has 2 channels which can be chosen.(S and M,SS and L etc)

※WAVER IC-9S has one Adjustable sensitivity.

WAVER SERIESOption

Feeder hopper(H)

Supplies counting objects into the bowl.
1.5L and 2.0L Feeder hoppers are available.

Feeder hopper(H)

Turntable(UR)

Repeat batch counting is possible for ten times or Extension.

Turntable(UR)

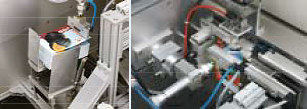

Packing machine(P)

Packing machine(P)

By setting the counting machine,enabling the fully automatic counting and packaging.
Bag to 55-130mm wide.
Can accommodate all types of bags.
You can adjust the bag set in the options part.
Vinyl paper,aluminum can respond to all.

Option IC-1i IC-250i IC-400i IC-0i IC-VA IC-VAi
Feeder hopper(H) × × × ×
Turntable(UR) × × ×
PC/Electric Balance Link ×
Packing machine(P) × × ×
【Option】Feeder hopper(H)
IC-1i
IC-250i ×
IC-400i ×
IC-0i
IC-VA ×
IC-VAi ×
【Option】Turntable(UR)
IC-1i
IC-250i
IC-400i
IC-0i ×
IC-VA ×
IC-VAi ×
【Option】PC/Electric Balance Link
IC-1i
IC-250i
IC-400i
IC-0i
IC-VA ×
IC-VAi
【Option】Packing machine(P)
IC-1i
IC-250i
IC-400i
IC-0i ×
IC-VA ×
IC-VAi ×

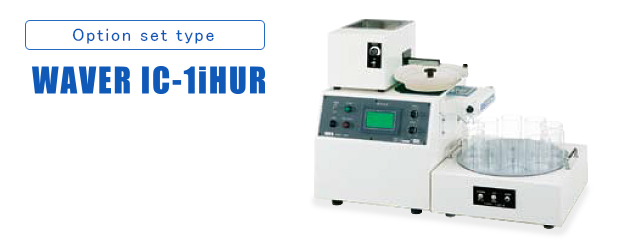

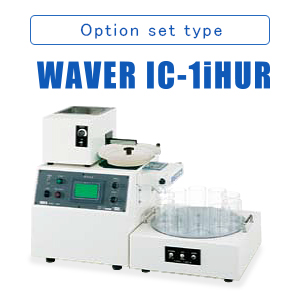

optionset
optionset

WAVER SERIESOption

A quantity display is possible using measuring machine.
Moreover data base of seeds are possible at PC linkage.

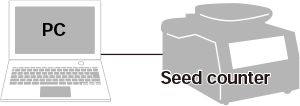

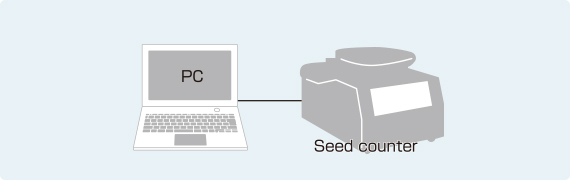

EL Series

+Seed counter

Count data is taken into PC.Database creation is also possible in the form at Excel.

EL Series
EL Series

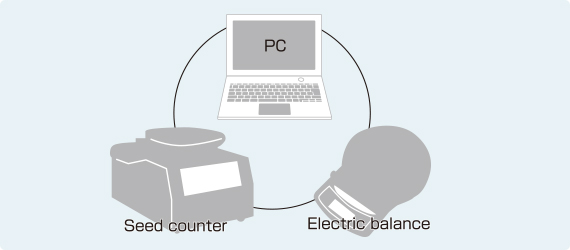

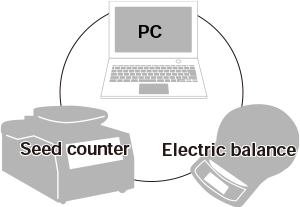

ET Series

+Seed counter+Electric balance

Count and it’s weight value of Batch and Totalize are taken into PC.

ET Series
ET Series

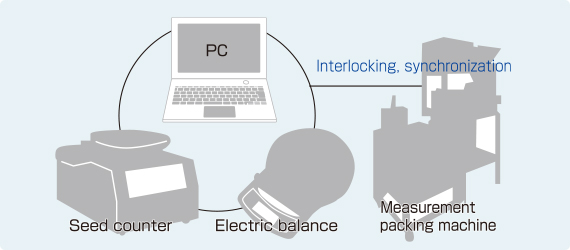

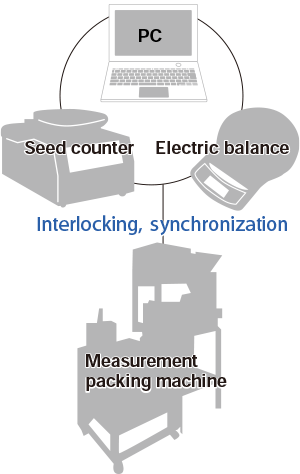

EX Series

+Seed counter+Electric balance+Measurement packing machine

A measurement packing machine is operated in the always accurate state using date of ET Series.

EX Series
EX Series
